Accommodation

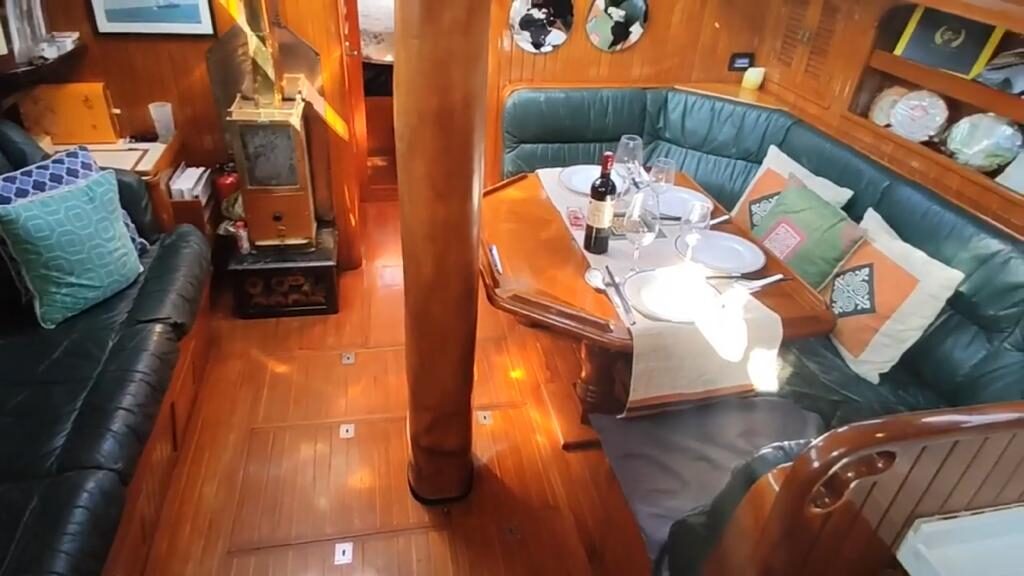

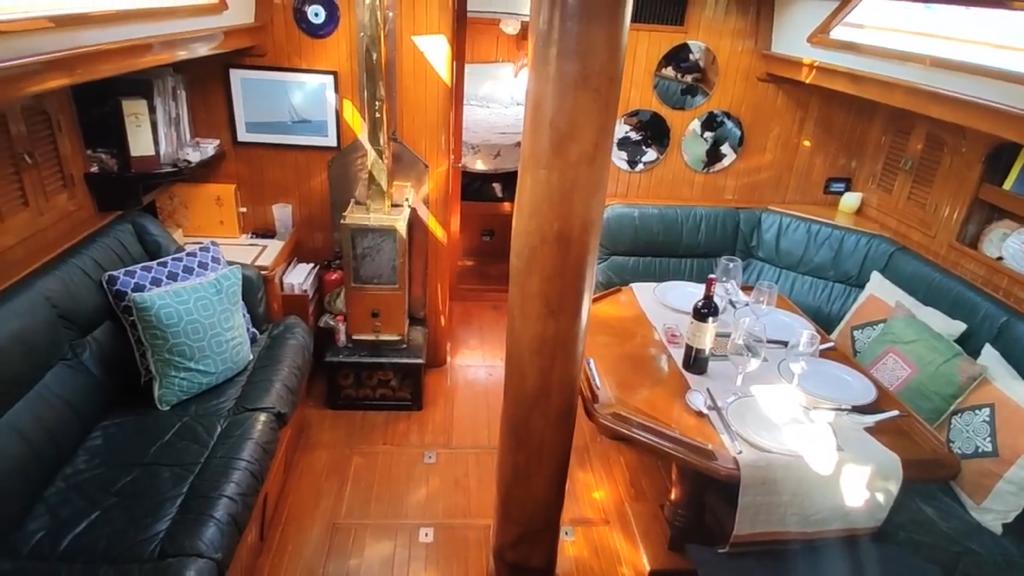

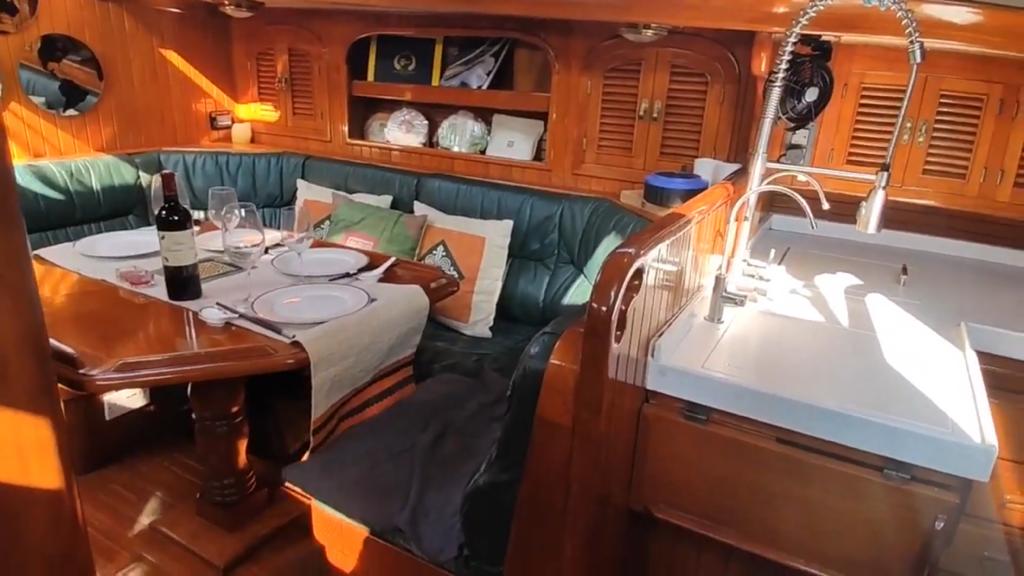

Saloon

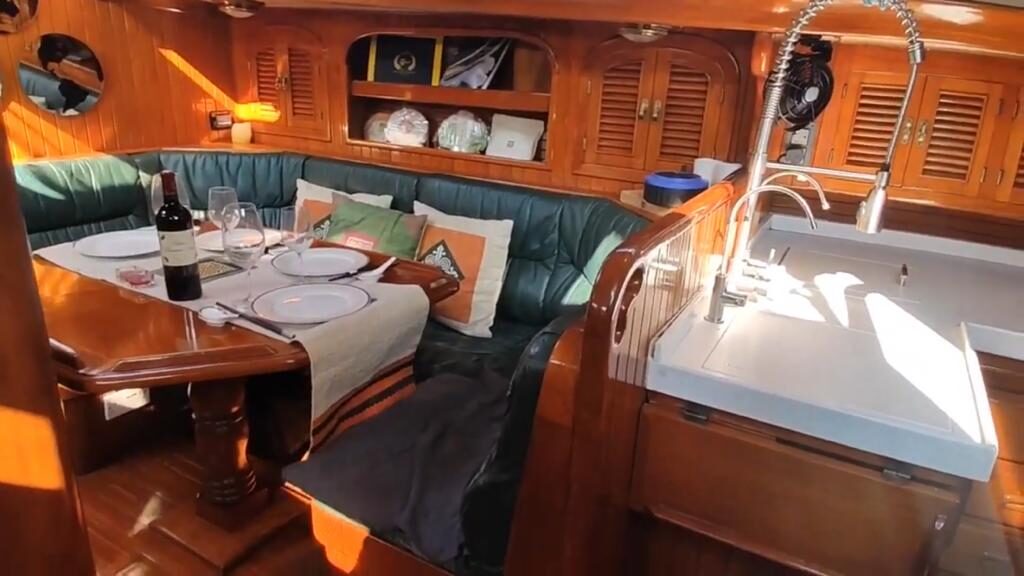

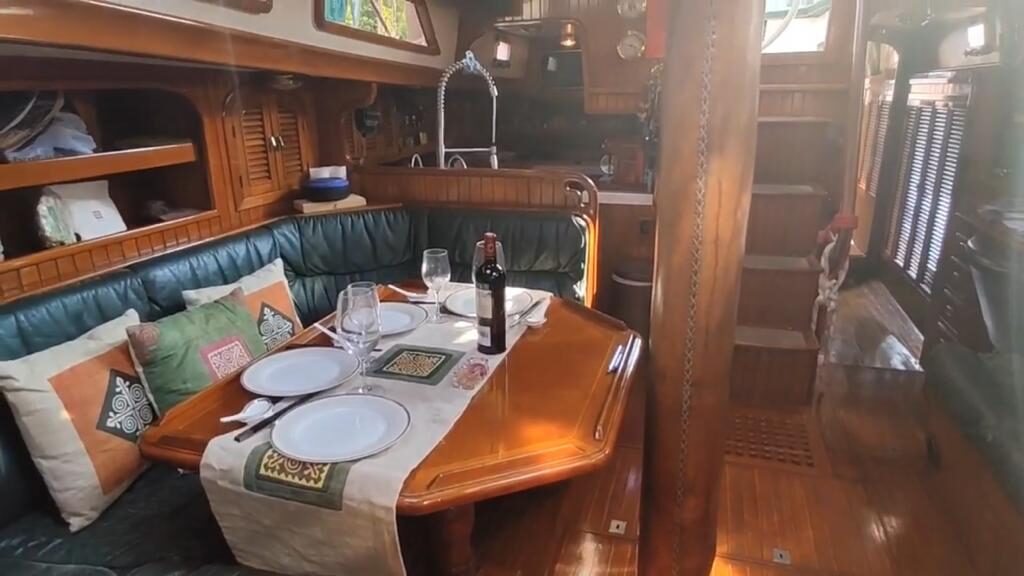

Large four place U-shaped dining table with new soft leather seating.

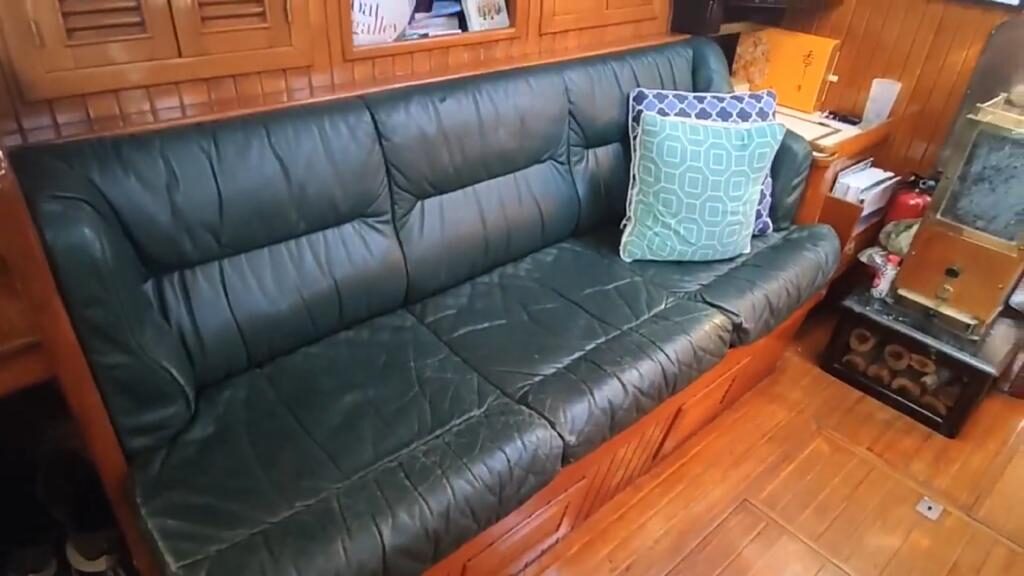

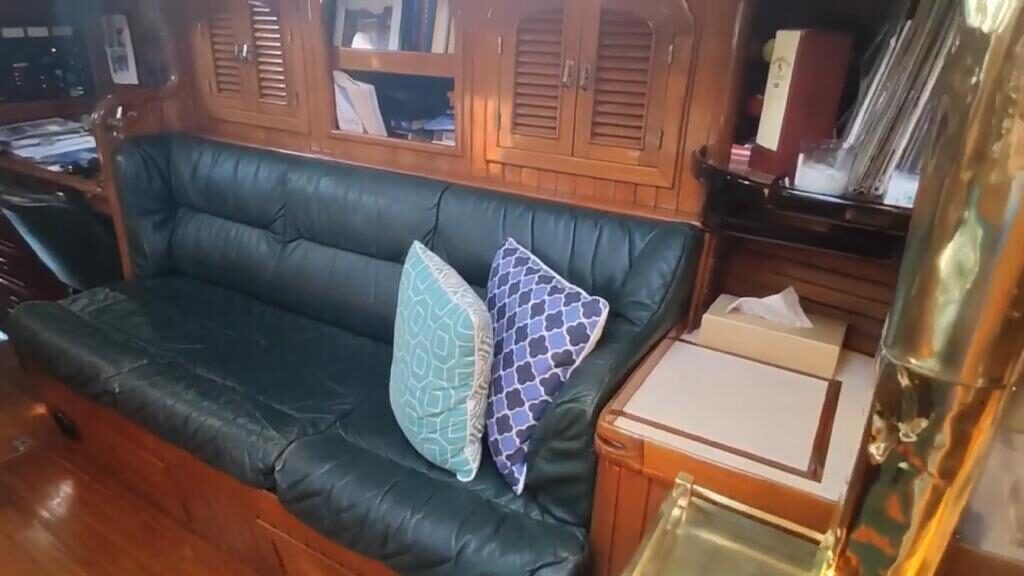

Opposite the dining table is a very comfortable three seat sofa again wrapped in new soft leather.

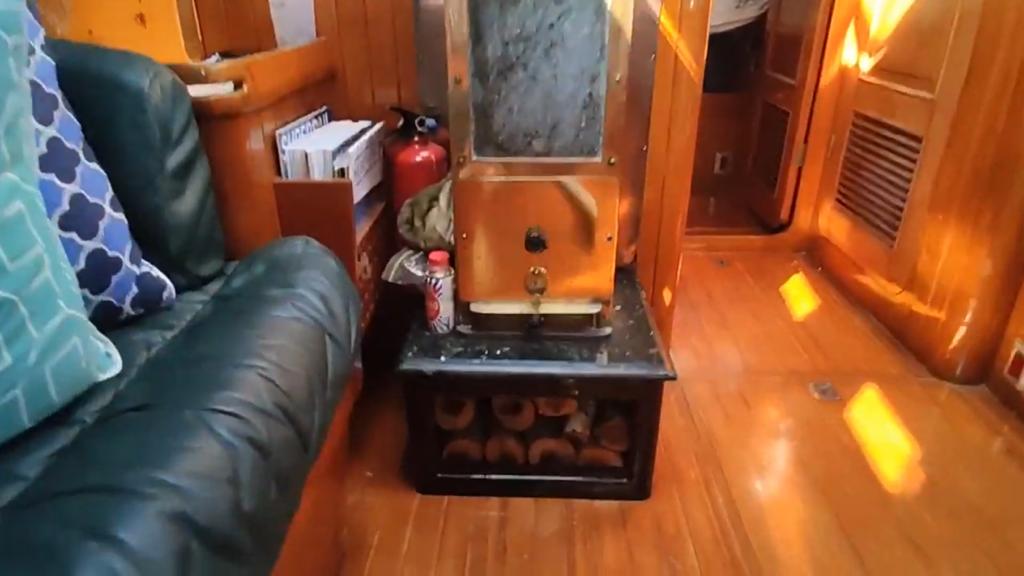

A wood burning stove/ fire place, perfect for those colder evenings or if sailing to higher latitudes.  “The Luke” “Soapstone Fireplace No 1” Solid fuel (wood stove) heater made of brass and soapstone.
A cedar wood Sauna! Now used to store the new Northern Lights generator and tools/ storage.
Large storage area for tools.

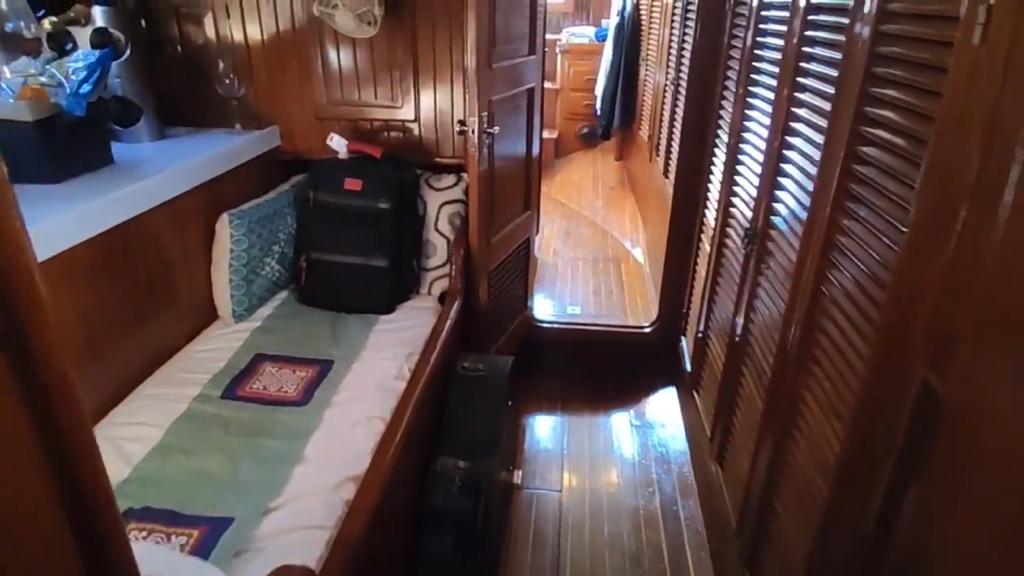

Pilot berth with lee board.

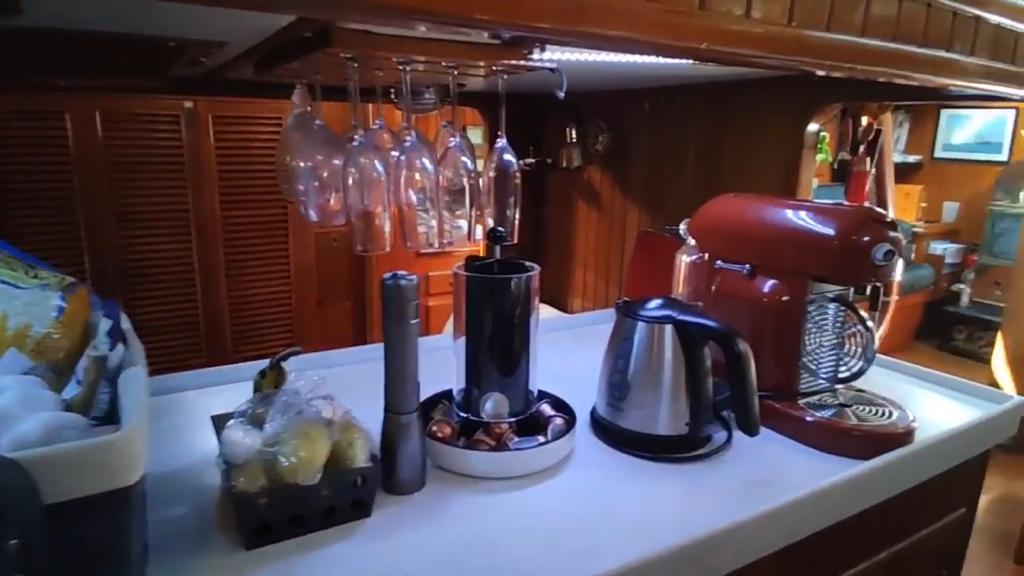

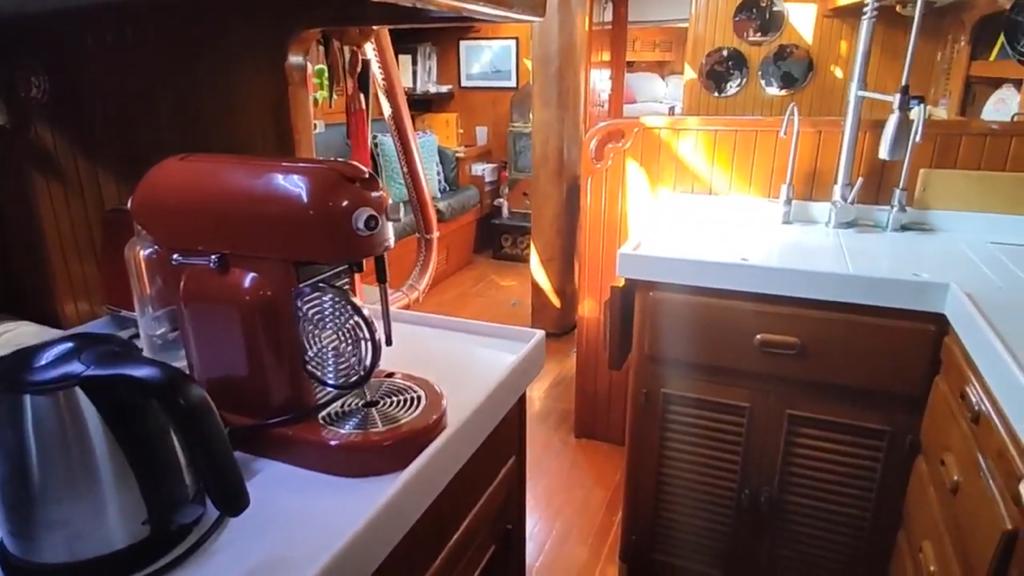

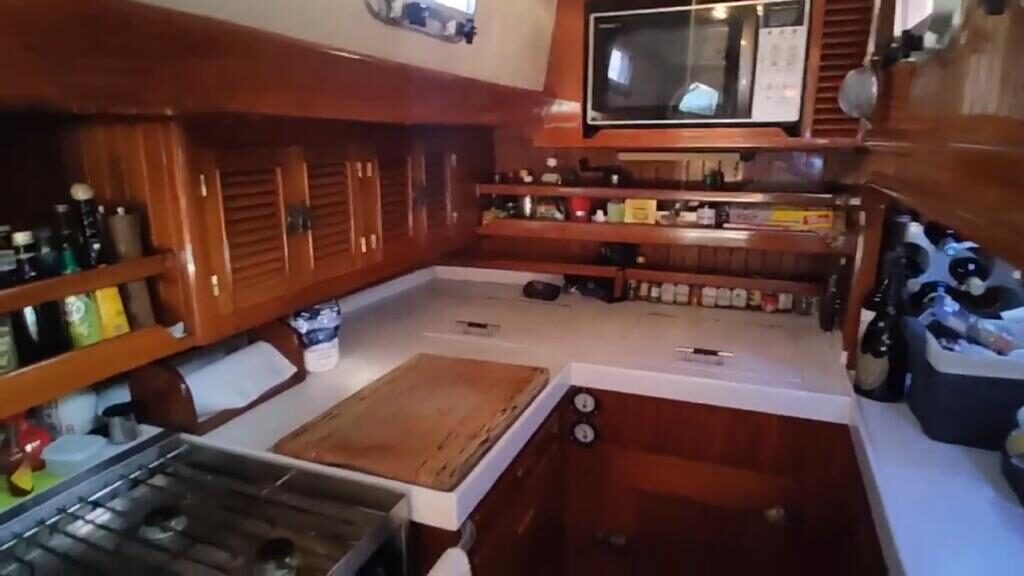

Galley

A beautifully designed galley incorporating a large two basin sink with two foot pump operated taps plus 12v DC pump fitted with accumulator. One foot pump for salt water and one for fresh water. Lots of storage, hand grips and fiddles.
New Corian counter tops throughout.
Range / Oven : Force 10 propane “Gormet Galley Range” with 4 burner range and oven, gimbled with lock.
Microwave : SHARP “Double Grill Convection Microwave Oven” R-892M(S)
Refridgerator / Freezer : 2 Technautics CoolBlue systems with 134a coolant 12v DC powered and large holding/cooling plates inst. 2016

Forward Guest Berth

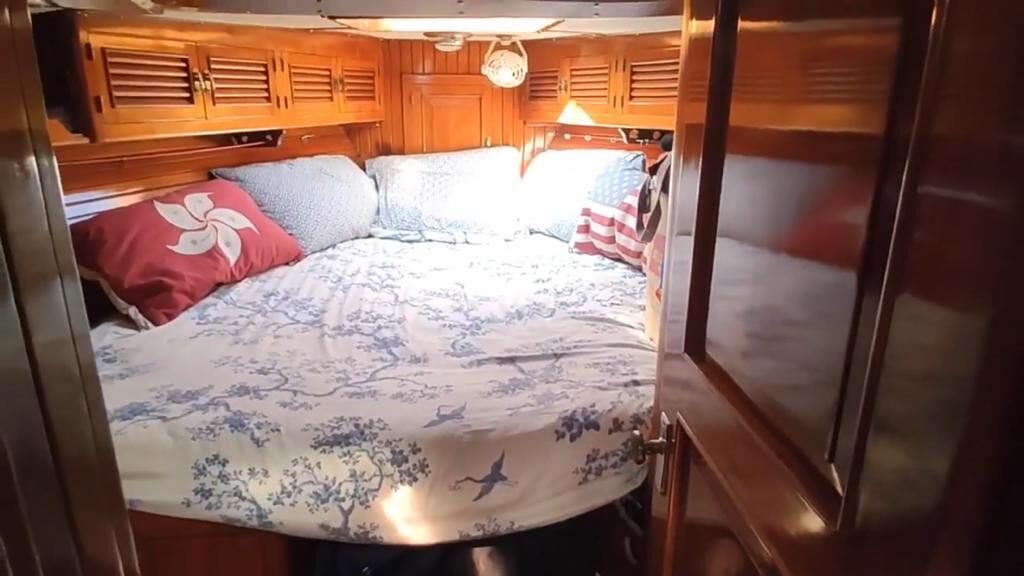

Large V-berth with storage underneath.

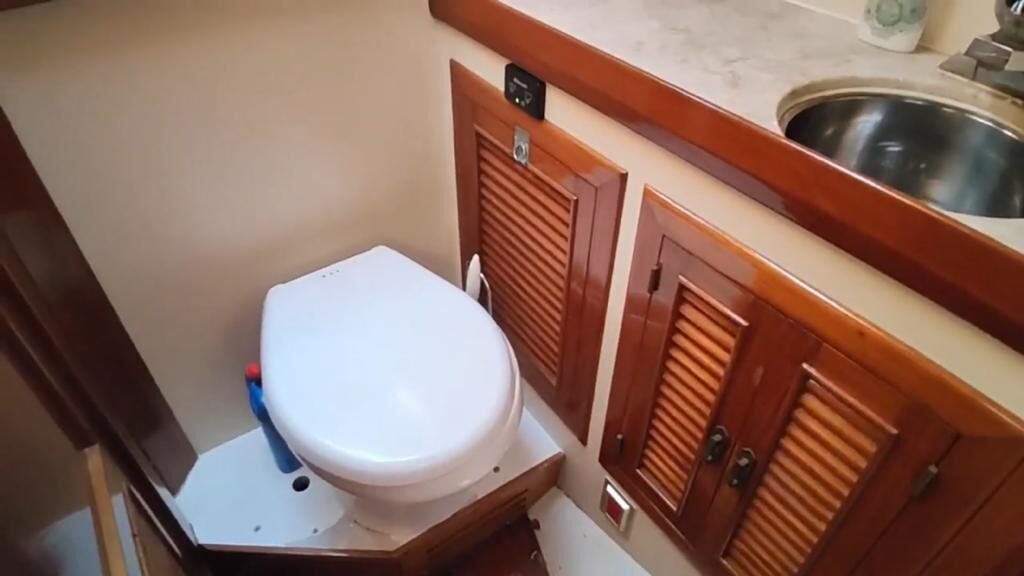

En-suite including quality Tecma electric toilet with mirror and sink with marble sink top. Access from the saloon.
Beautifully appointed in teak.

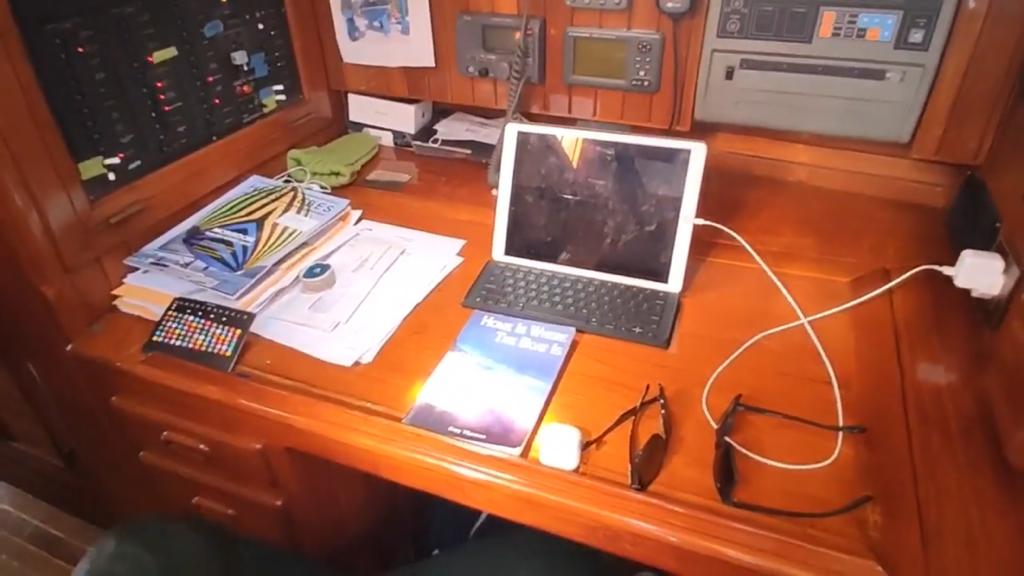

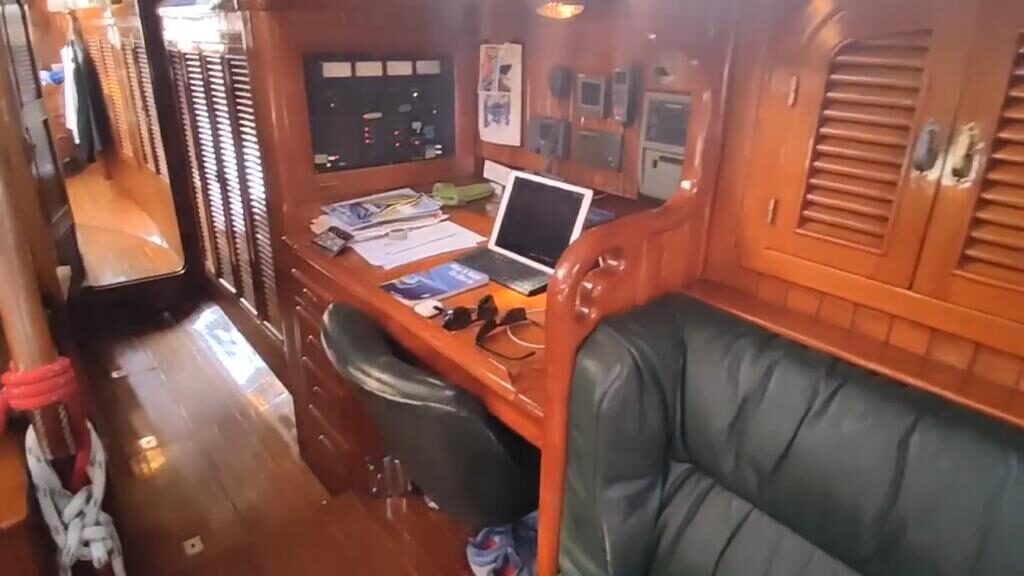

Navigation Station

Large comfortable chair wrapped in soft leather.

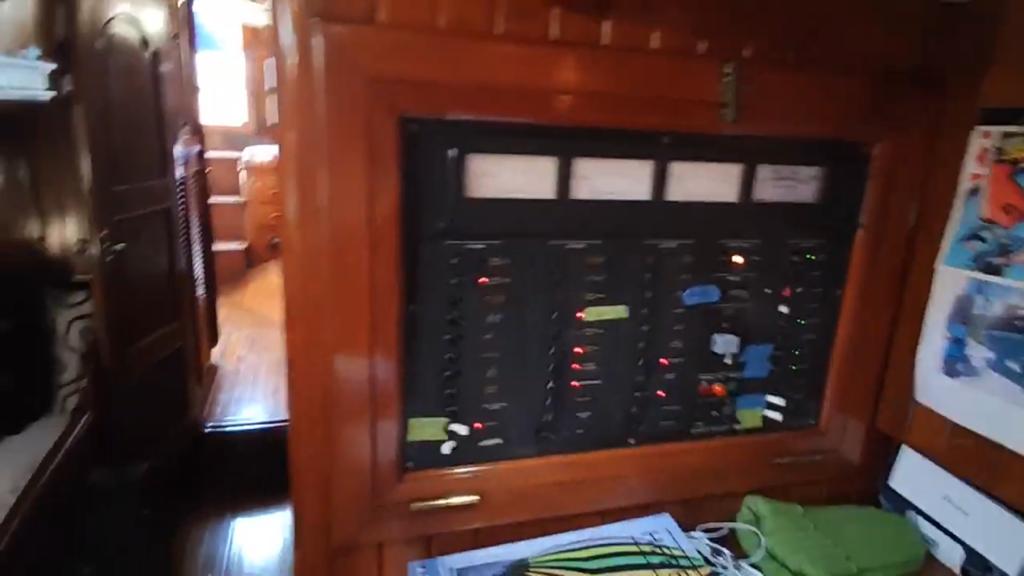

Electrical circuit panel with VHF radio and separate autopilot control.

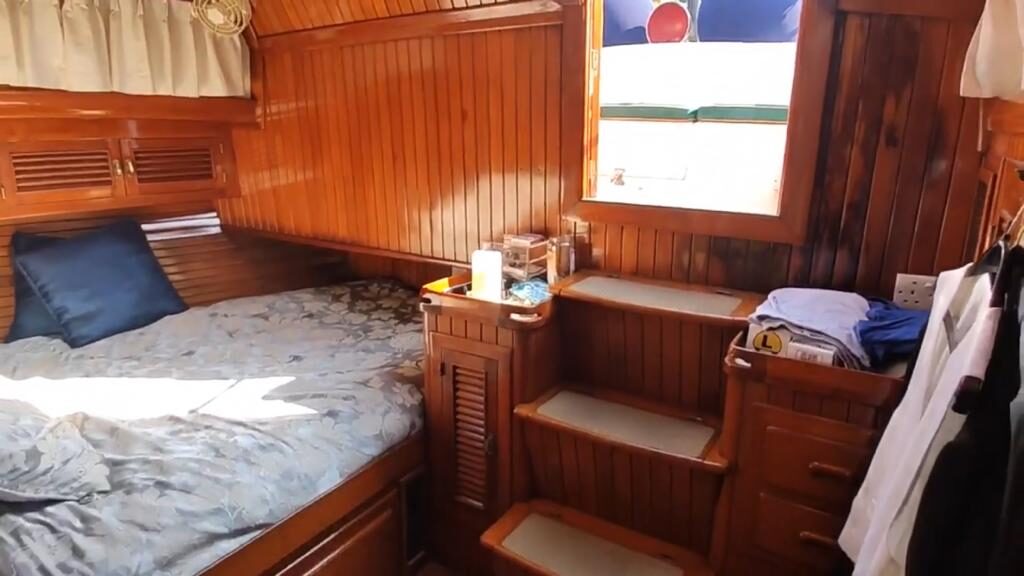

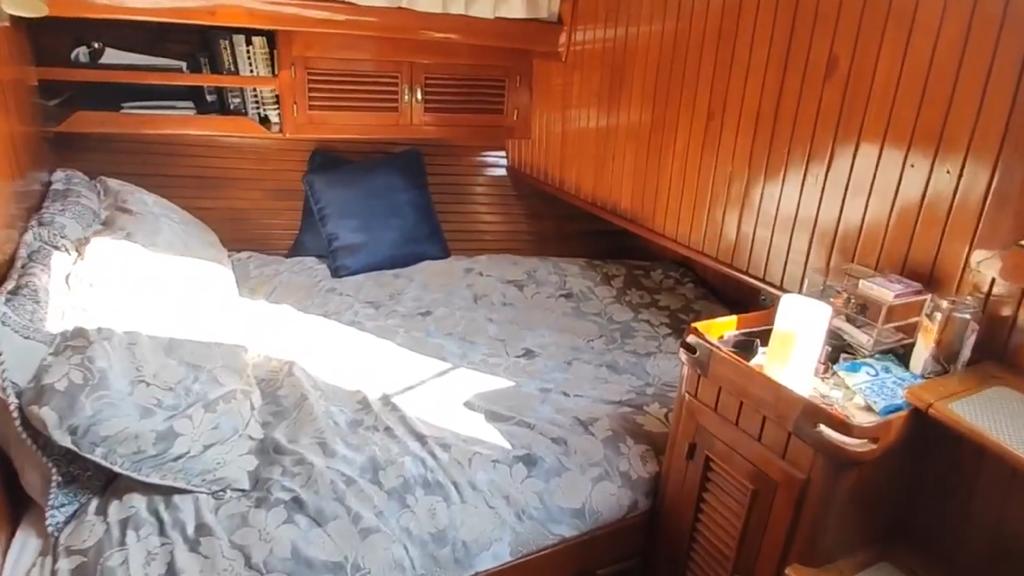

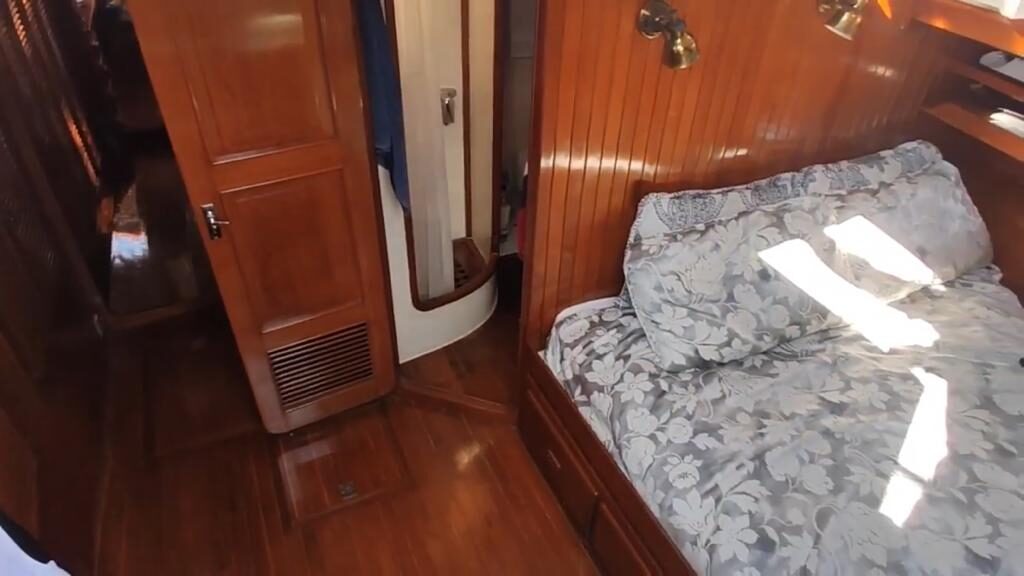

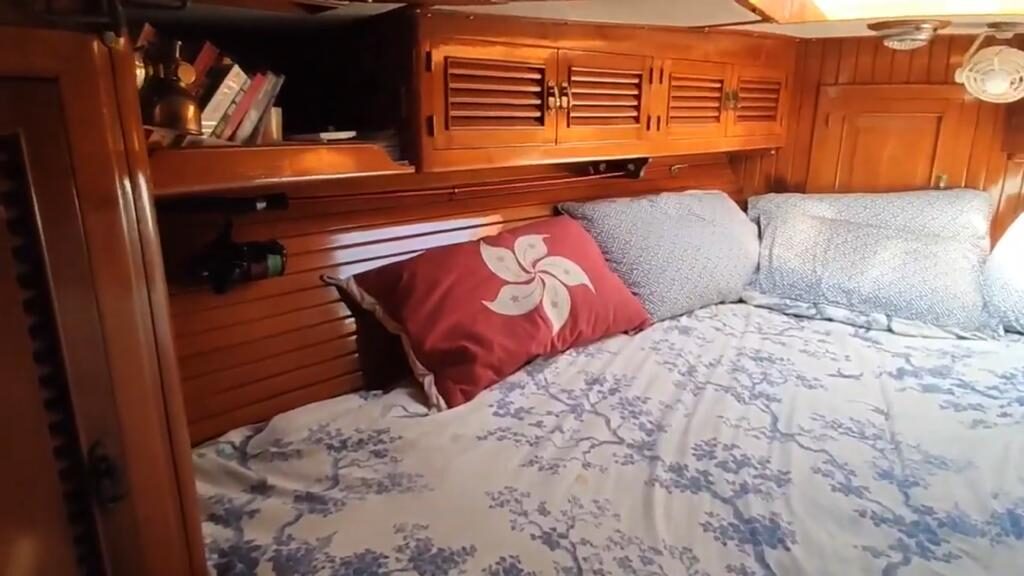

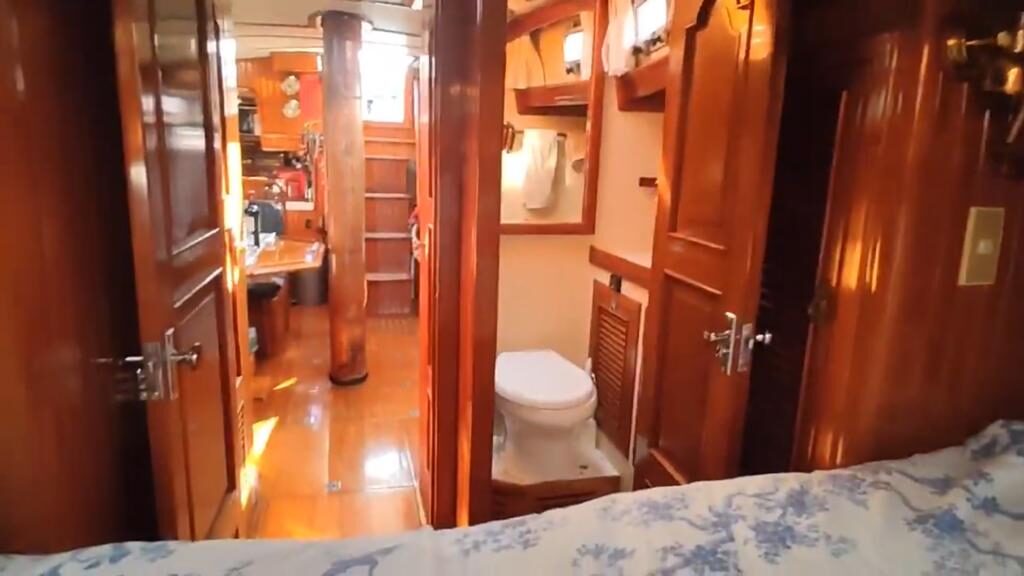

Aft Owners Stateroom.

Lots of cloths storage.
Queen sized bed.

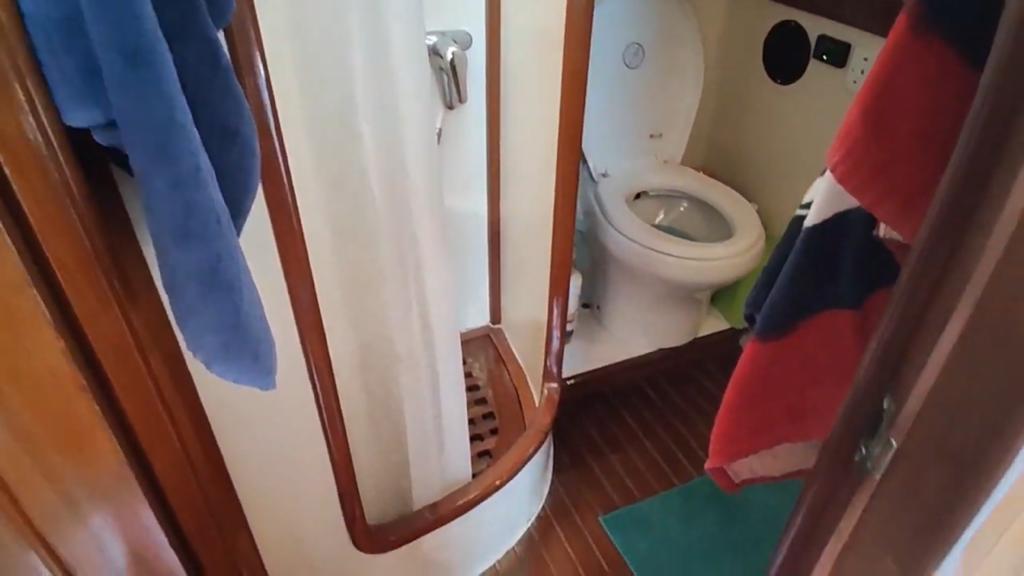

Large en-suite bathroom with separate shower. Tecma electric toilet – Domestic Master Flush Low Profile 12volt electric flush with macerator equippted with bidet option and soft close seats.
Marble sink top.

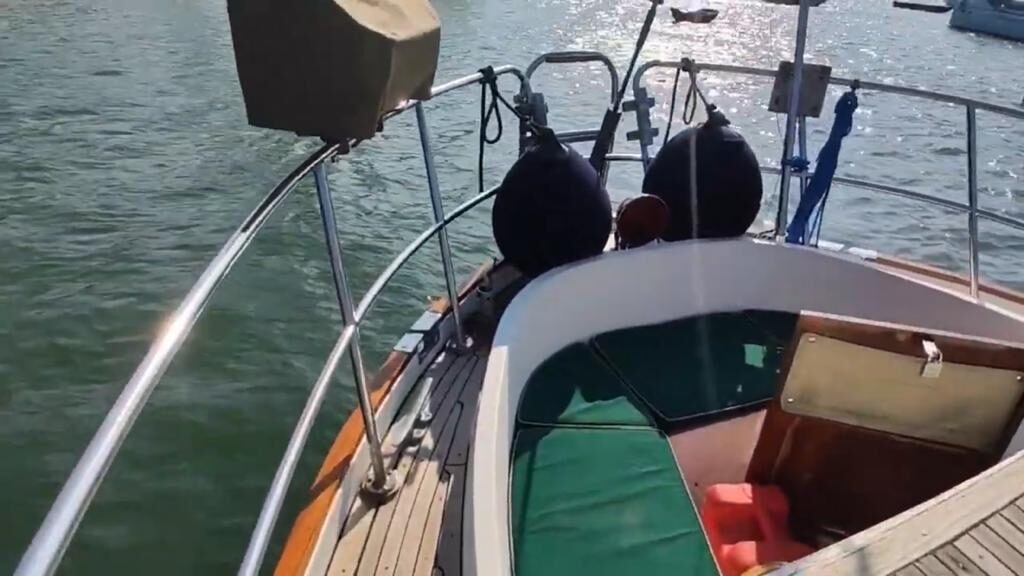

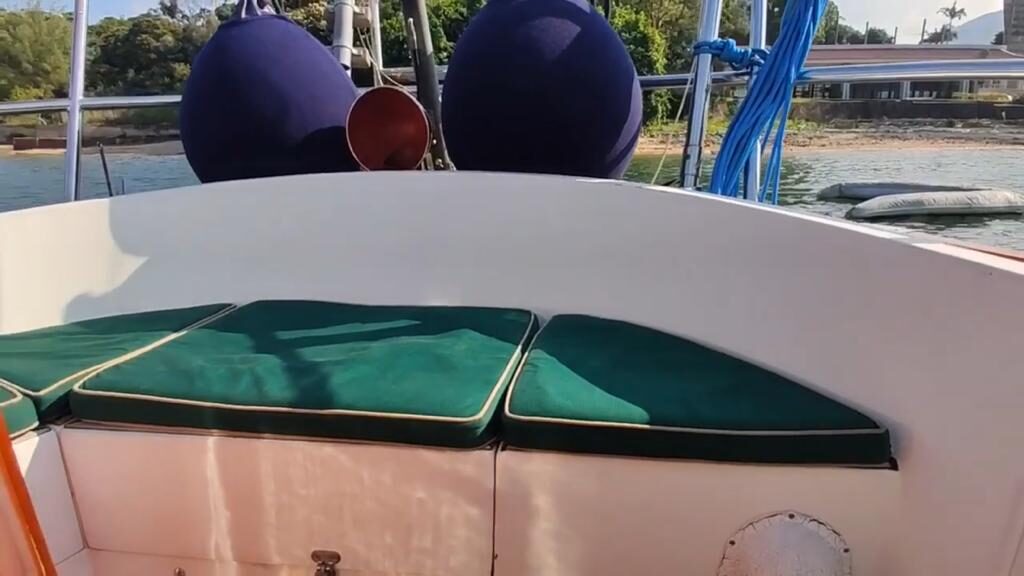

Access to the unique owners sun-deck/ aft cockpit.

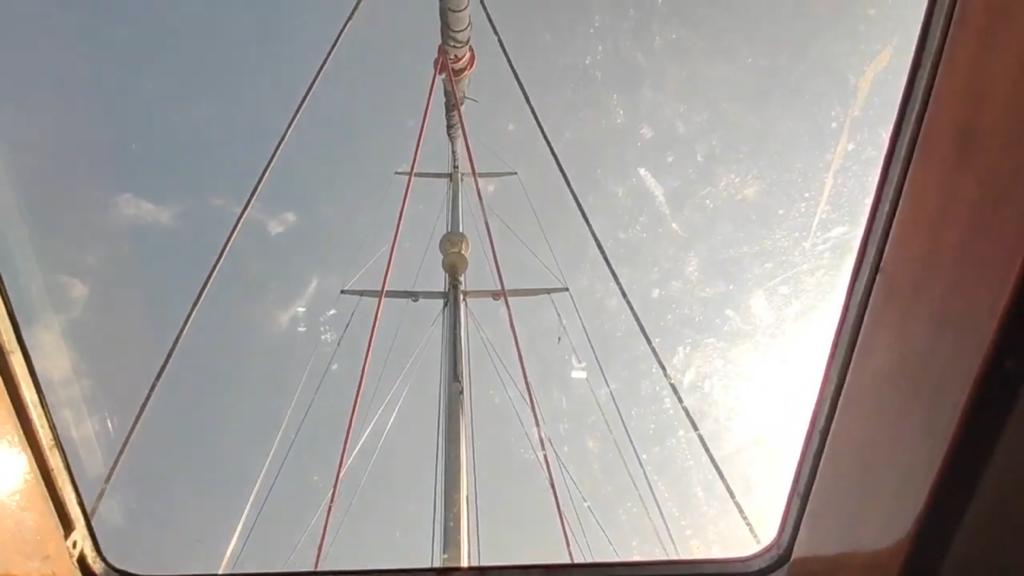

Sails and rigging

Sail Area : 1116 square feet / 103.68 square meters
Mast height : 66 feet / 20.2 meters
Rod Rigging : Nitronic 50 Rod -22 R505-022 9.53mm diameter 10,200 kg / 22,500 lb minimum breaking strength replaced 2012
Turnbuckles : -22 C550-222424 pin size 18.92mm length open : 563mm length closed : 427mm replaced 2012
Chainplates : Encapsulated stainless chainplates replaced in 2014
Vang And Backstay : NAVTEC System V Multi Function hydraulic vang and backstay
Furlers : Profurl Classic roller furl for genoa and staysail, in-mast furl system for mainsail
Mainsheet : 20mm double braid new in 2018
Genoa Sheets : 20mm double braid new in 2018
Staysail Sheets : 17mm double braid new in 2018
Running Backstay Sheets : 13mm double braid new in 2018
Main Halyard : 13mm double braid new in 2018
Main Outhaul : 13mm double braid new in 2018
Main Furler : 10mm double braid new in 2018
Genoa Furler : 13mm double braid new in 2018
Staysail Furler : 9mm double braid new in 2018
Spinnaker Halyards : 2, old
Emergency Tow Line : Nylon three strand 18mm (Located in port shirt locker in aft stateroom, bridle located in starboard lazzertte)
Floating Dinghy Tow Line : Floating line 7mm blue colour
Traveller Lines : 10mm double braid new in 2018
Mainsail : UK Sails main new in 2018 (very low usage)
Genoa : UK Sails genoa new in 2018 (very low usage)
Staysail : Doyle Sails staysail. Age unknown and showing some wear at the UV cover stitching

Engine, Propeller & Engine Accessories

Engine Block : Perkins 4.236 4 cylinder diesel 85 HP (63.41kw) Serial No.LD14420U950925L. 3,671 hours on old tach, 120 on new = 3791 hours
Alternator : Belmar 6-series 100a with MC-614 smart regulator including alternator and battery temp sensors installed 2016
Gear box : Borg Warner Velvet Drive model 10-17-010 s/n 12164 geared at 2.10:1
Generator : New Norther Lights 8kw (6kw at 220v) 50Hz including sound shield & water/exhaust separator installed 2017 with 300 hours
Propeller : PYI Maxiprop 3 blade 10 inch folding with “Pellerguard” coating applied Oct 2020
Shaft : 1.5 inch stainless shaft replaced along with new cutlass bearing in 2018
Engine Fuel Filters : Dual Racor Model 75/500MAXM
Outboard Engine : 1x Murcury 15 HP used outboard that starts easily and runs well

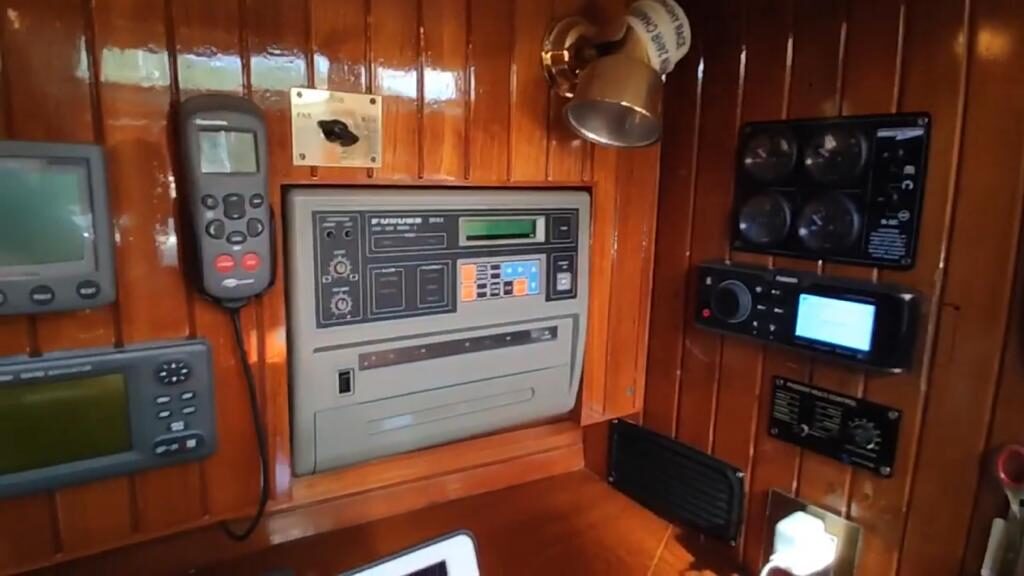

Electronics

Navigation

Depth Speed & Wind : Raymarine ST60+ with Seatalk System
Autopilot & Digital Compass : Raymarine ST8002 with Seatalk System
Autopilot Remote Control : Raymarine Smart Controller
Multifunction Display : Raymarine ST60+ GRAPHIC multifunction display located at chart table
VHF Radio : iCom IC-M504 Submersible Plus
Backup GPS : Furuno GPS Navigator GP-31 located at chart table
Primary Navigation : iPad with Navionics installed located and chargable from the helm

Air Conditioning

16,000 BTU Dometic 220v air conditioning unit with reverse cycle heating and soft start installed under berth in aft stateroom.
16,000 BTU Dometic 220v air conditioning unit with reverse cycle heating and soft start installed in forward starboard equipment room
serving the forward cabin and saloon.

Batteries, Charger and Monitor.

220v Charger : Victron Energy Phoenix MultiPlus 12v 3000va 120amp charger/inverter (inverter not wired in)
Solar Charger : PWM Solar Charge Controller. 1 large solar panel located in FWD equipment room
Battery Monitor : Ample Power Energy Monitor/Controller
House Batteries : 4x Energizer N150(180G51L) 150Ah (20HR) RC300 950CCA (SAE) new in Sept 2020
Engine Battery : 1x AC Delco SN150 1000 Cold Cranking Amps 150 Amp Hours @ 20 Hr Rate replaced Feb 2017
6. Windlass Battery 1x AC Delco SN150 1000 Cold Cranking Amps 150 Amp Hours @ 20 Hr Rate replaced Feb 2018.

Pumps

Bilge Pump 1 : Whale High Capacity Water/Waste Gulper 320 diaphram pump switch controlled pumping at rate of 20 L/min
Bilge Pump 2 : Whale Gulper IC High Capacity Water/Waste diaphram pump electronic controlled pumping at rate 20L/min
Bilge Pump 3 : Whale Henderson MK V self priming USCG approved manual hand operated pump at companionway stairs
with a flow rate of 66L/min
Spare Bilge Pump : Whale High Capacity Water/Waste Gulper 320 diaphram pump switch controlled pumping at rate of 20 L/min
Shower Drain Pump : Whale High Capacity Water/Waste Gulper 320 diaphram pump at rate of 20 L/min
Deck Wash Pump : Jabsco PAR-MAX 4.0 60 PSI Automatic Washdown Pump Model 32605-0092
Spare Deck Wash Pump : Whale Saltwater Washdown Kit with a flow rate of 1L/min located in fwd saloon equipment room
Airconditioning Pumps : 2x Iwaki 220v Magnet Pumps Model – MD-30R-220N
Spare Airconditioning Pump : Sanso 220v Magnet Pump Model – PMD-421 located in tool room

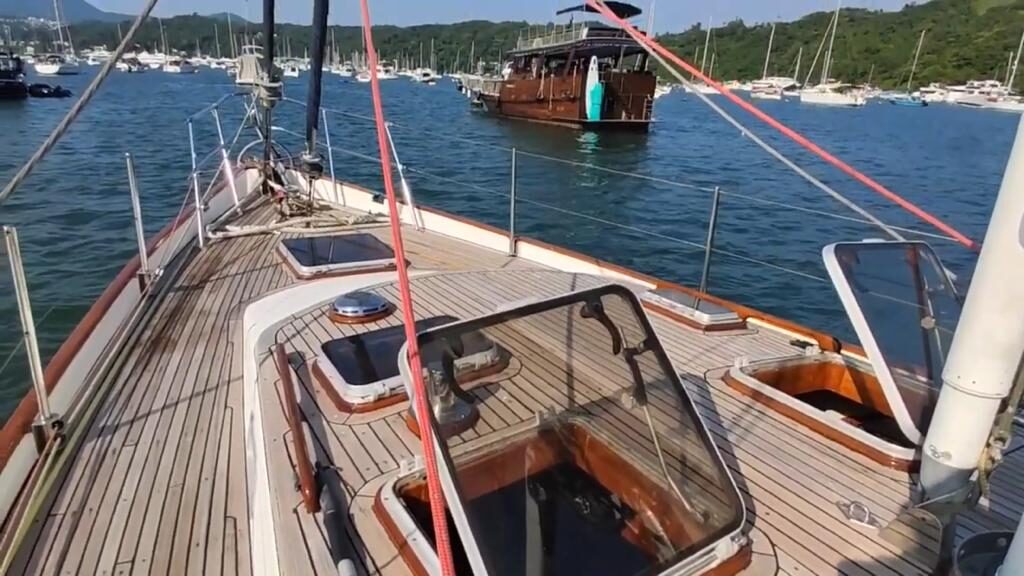

Deck Equipment

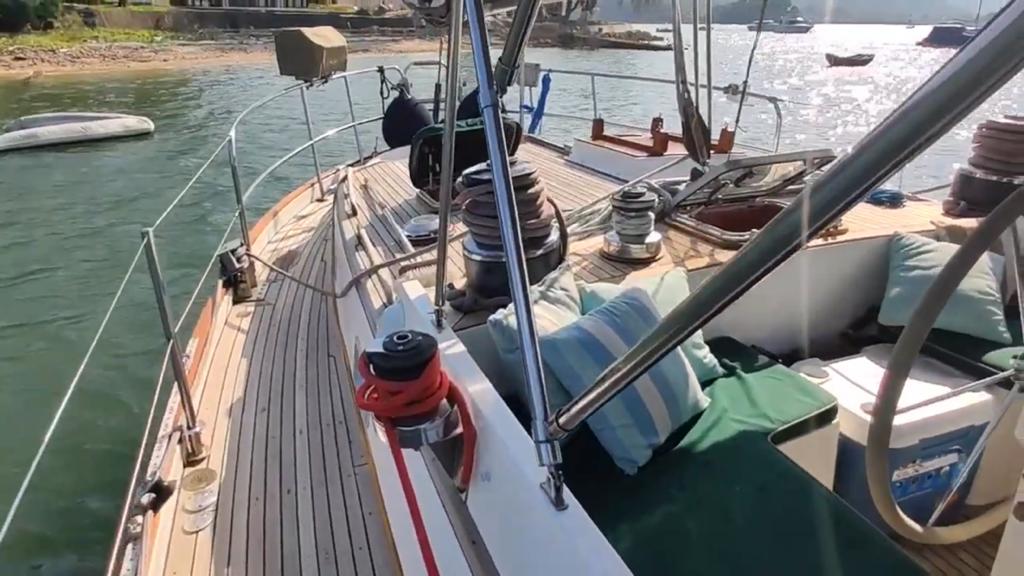

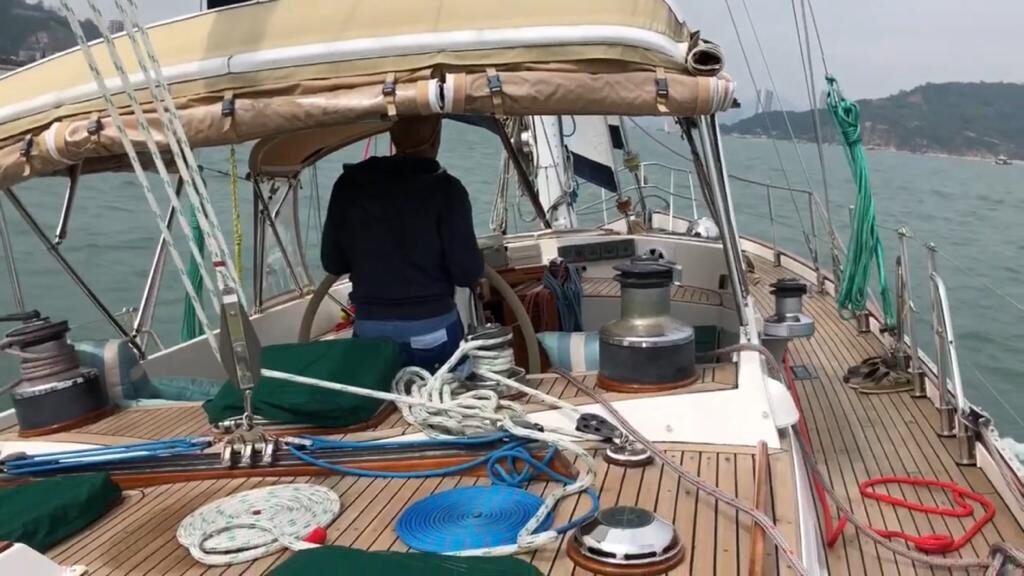

Winches

Genoa Winches : 2x Lewmar 65
Staysail Winches : 2x Lewmar 43
Mainsail Outhaul/Furler Winch : 1 ELECTRIC Lewmar 40
Mast Mounted Halyard Winches : 2x Lewmar 46

Ground Tackle

Anchor : 40kg Rocna installed 2018
Chain Length : 100 meters painted red every 10 meters
Windlass : Maxwell Marine New Zealand VWC-3000 clutch driven chainwheel rachet pawl with emergency hand drive
Dinghy Anchor : Rocna 4Kg in aft lazarette.

Deck Warps and Fenders

Fenders : 4x F3 fenders, 2x A3 ball fenders, 2x G4 small fenders to keep spring lines off the paint.
Docking Lines : 5x 20mm black docking lines with internal spring
Mooring Lines : 2x 37mm nylon double braid new with shackles – Oct 2020

Covers & Bimini

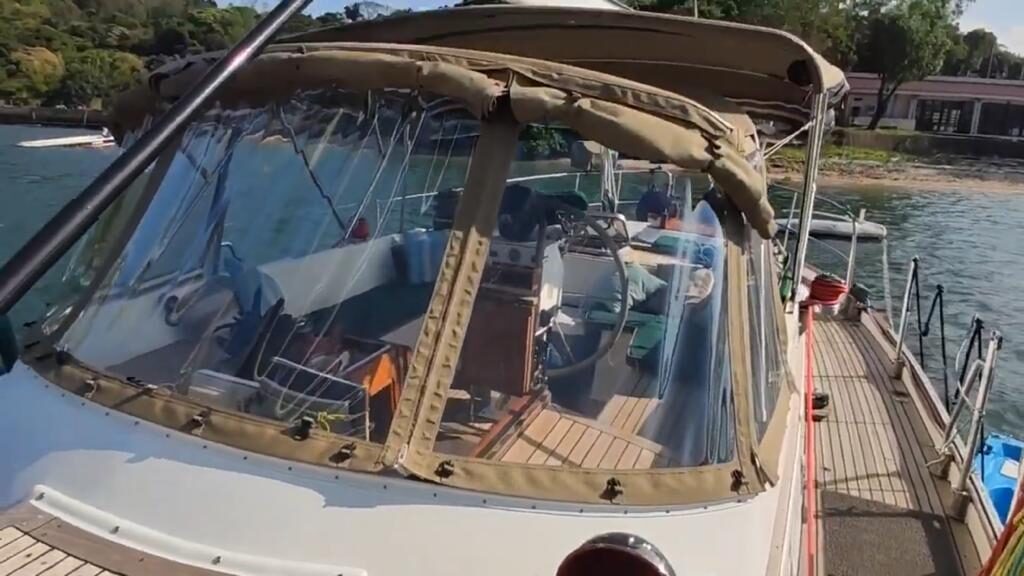

Dodger and Bimini : Full set of Sunbrella 4860-0000 Silica Sesame with Trinchero Kristall .8mm clears all sewn with Tanara thread
completed in 2019 by Sing Kee Sail and Flag (Janice)
Cockpit Cushions : Full set for both center and aft cockpit of Sunbrella Hemlock Tweed 4605-0000 with Toast 4628-0000 piping
completed in 2019
Hatch Covers : Full set of Sunbrella Hemlock Tweed 4605-0000 installed 2019
Winch Covers : All deck and windlass winches covered (excluding mast winches) with Sunbrella Hemlock Tweed 4605-0000
BBQ Cover : Sunbrella Silica Sesame 4860-0000 installed 2019
Full Boat Cover : Sunbrella, old but in good and usable condition
Boom Tent/Cockpit Cover : Sunbrella Hemlock Tweed 4605-0000 new in June 2020

Miscellaneous and Spare Items

1. Clock & Barometer : Chelsea’s Boston Series Striking Clock and Barometer manually wound with bell striking for first watch, mid-watch,
morning watch, forenoon watch, afternoon watch, 1st dog watch and 2nd dog watch
2. Stereo System : Fusion Marine Stereo UD-750 head with bluetooth and cable connections 3 zone control. 4 saloon speakers and 1
saloon subwoofer. (Aft stateroom and center cockpit speakers decommisioned)
3. Spare DC Fan : Spare 12v Caframo Bora 3 Speed Marine Fan in box
4. Rig Cutters : One large pair of rig cutters located behind the aft stateroom door
5. Tools : Many and various tools including spanners, drivers, saws, drills, pliers, electrical tools and connectors etc…
6. Binoculars : 1 pair Eterna Marine II binoculars with case
7. First Aid Kit : 1 Spencer first aid kit fully stocked new in 2020
8. Shore Power Cable : 100ft 14mm orange cable new in Oct 2020
9. Cooler Box : 47 Litre Coleman ChillyBin
10. Winch Handles : 2x Antal Speedylock Composite, 2x Lewmar Multi-speed Stainless Heavyduty
11. Table : Folding dining table in cockpit with cup holders revarnished in Oct 2020
12. BBQ : Magma Boat BBQ
13. Garden Hose : On reel with extra length for deck wash located in aft lazzerette
14. Anchor Snubber : aft lazzerette

Paint

Topsides : Blue RAL 5011 with grey stripes RAL 7004 over highbuild primer sprayed Oct 2020
Bottom : Black Internation Micron Extra 2 sprayed Oct 2020
Brightwork : Epifanes Poly-urethane 2 component (2 pack) yach varnish 10 coats applied Oct 2020
